Factory Photo Reference

Fiber Optic Patch Cord Production Photos, Fiber Optic Cable Assembly Workshop and Fiber Optic End Face Inspection

These fiber optic cable assembly workshop photos help B2B buyers understand the practical production flow behind patch cords and custom fiber optic cable assemblies: cable preparation, assembly, fiber optic end face inspection, work-in-process control, packing and sample reference.

Send Assembly RFQ Factory & QC Center

Patch cord assembly line with two rows of workstations where workers handle yellow and aqua fiber cords

Production Workflow

What buyers can confirm from these photos

Use these photos as visual context for RFQ discussions around a fiber optic cable assembly workshop. The exact inspection record, packing method and documentation scope should still be confirmed by product type and order requirement. All photos on this page were taken in our own factory.

Automatic fiber cable cutting machine with a cable reel pay-off stand and control screen — **Cable preparation**Length preparation, cable handling and workstation setup before connector assembly.

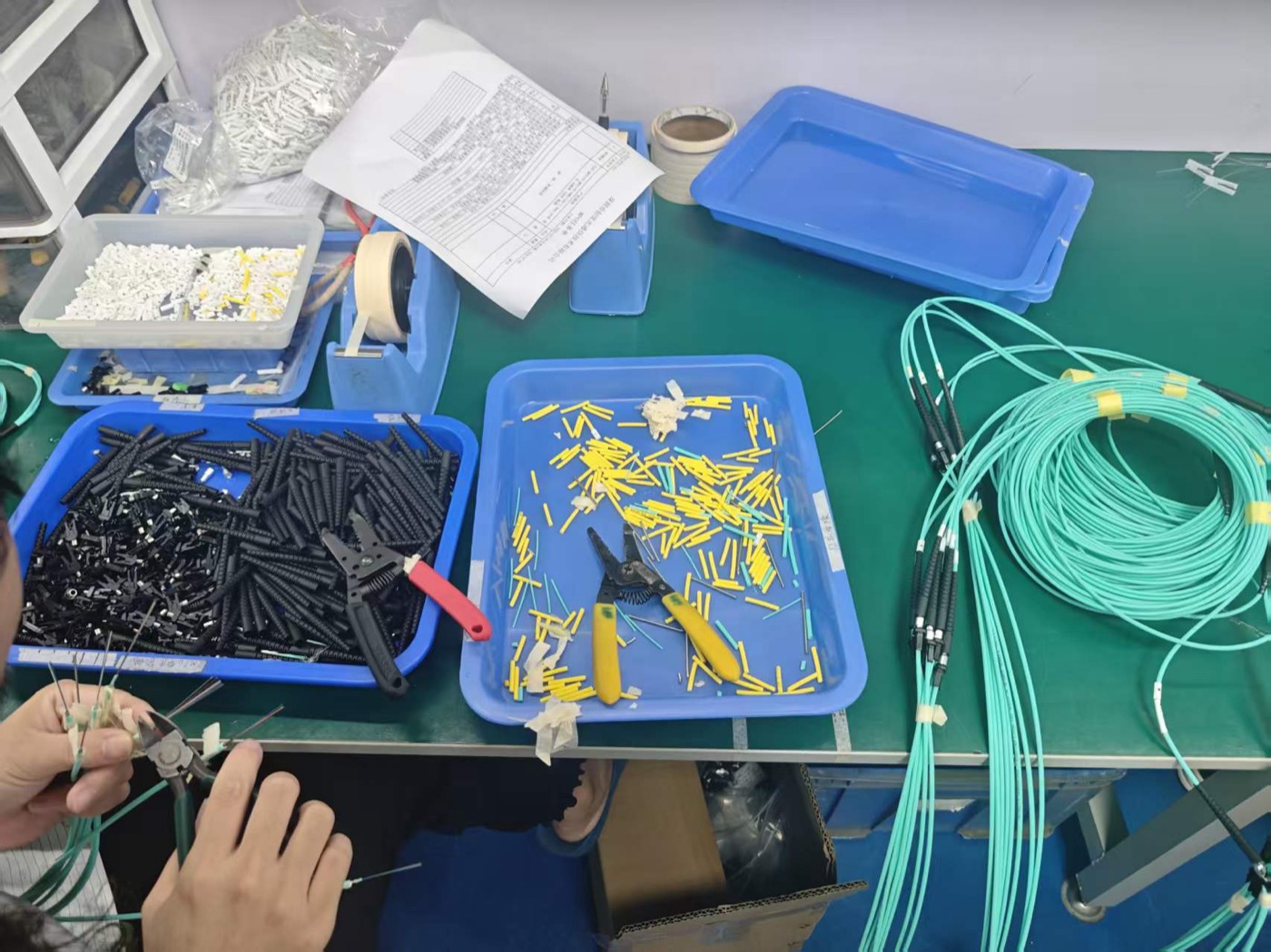

Hands assembling fiber connectors at a workbench, with blue trays of black and yellow connector parts and coils of aqua patch cord — **Connector assembly**Connector parts, sleeves and color-coded cable assemblies organized at the bench.

Technician checking an aqua patch cord end face with a video inspection scope at a workbench — **Fiber optic end face inspection**Visual inspection support for patch cords and cable assemblies when required by the RFQ.

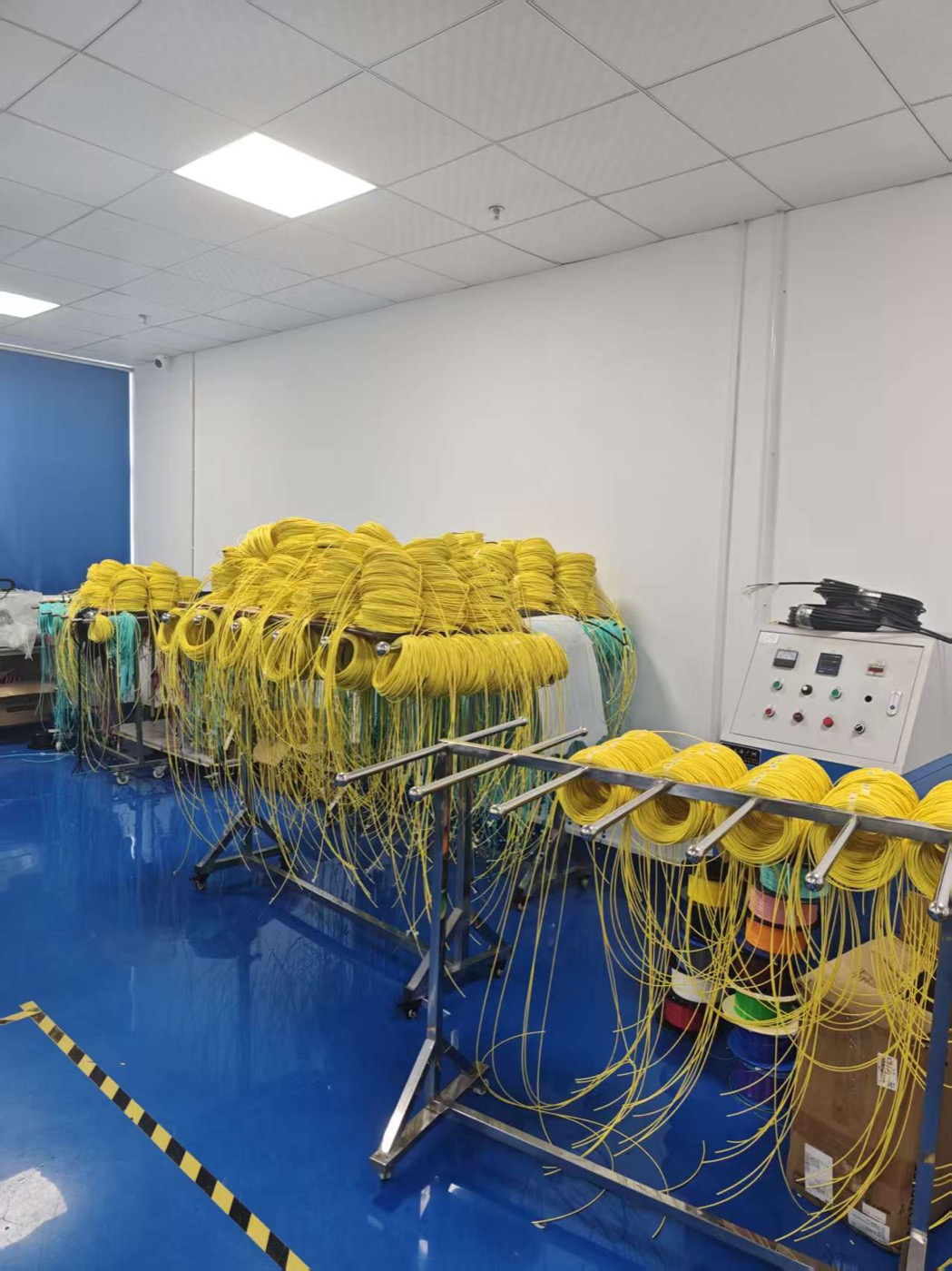

Yellow fiber patch cords hanging on work-in-process racks next to test equipment — **WIP organization**Work-in-process racks for yellow singlemode and aqua multimode cable assemblies.

Stacks of coiled black fiber cables tied and packed on a workbench in a packing area — **Packing area**Coiled and wrapped cable assemblies prepared for carton packing and shipment review.

Glass display cabinet holding framed fiber patch cord and cable assembly samples — **Sample reference**Sample display for patch cords, fanout assemblies, MPO/MTP-style assemblies and pigtail formats.

How to use these photos in an RFQ

For a faster quotation, send connector type, polish type, fiber mode, cable diameter, jacket color, length, quantity, label, packing requirement and destination country. If the order needs visual confirmation, ask for relevant photos before shipment.

For patch cords: confirm LC, SC, FC, ST, UPC/APC, cable color, length and label.
For custom assemblies: attach a drawing, BOM or reference sample photo.
For packing: confirm inner bag, carton mark, project kit or private-label requirement.
For quality: confirm end-face inspection, insertion loss or return loss scope according to the product.
